Corten Steel Flat Face Edging How To

Cor-ten-steel.co.uk ship steel garden edging UK wide

Metal garden edging is quick and easy to install and shipped flat packed

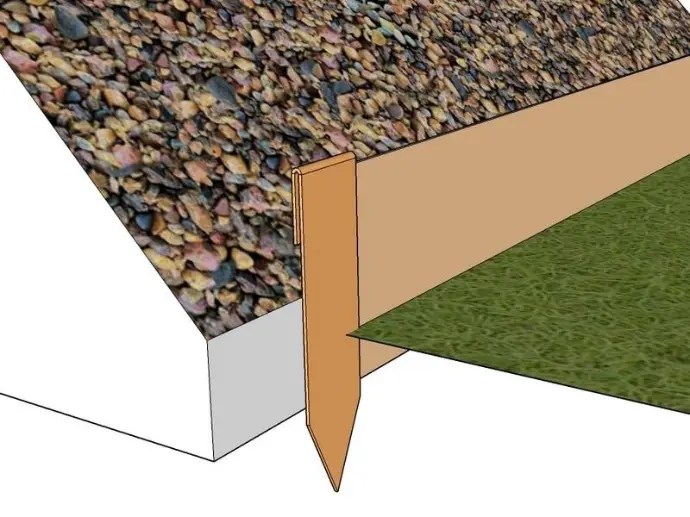

Edge Height

Around 1/3rd of the edging may be buried, which provides additional support to the edge.


Flat Face Peg Length

Pegs should be at least 100mm longer than your selected edging, in softer soils use longer pegs

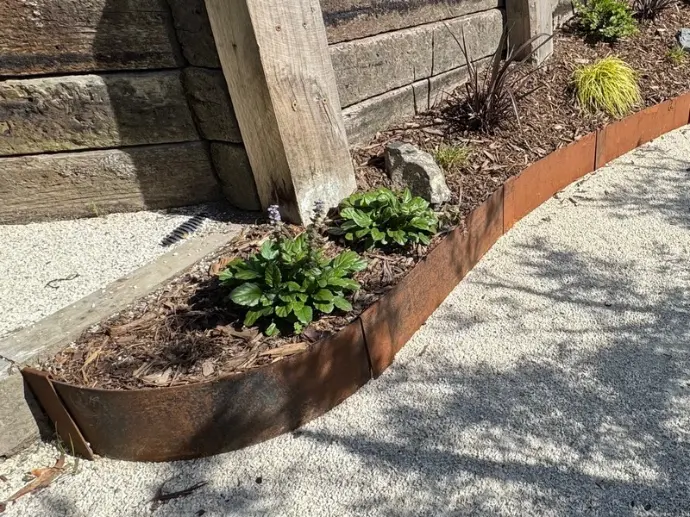

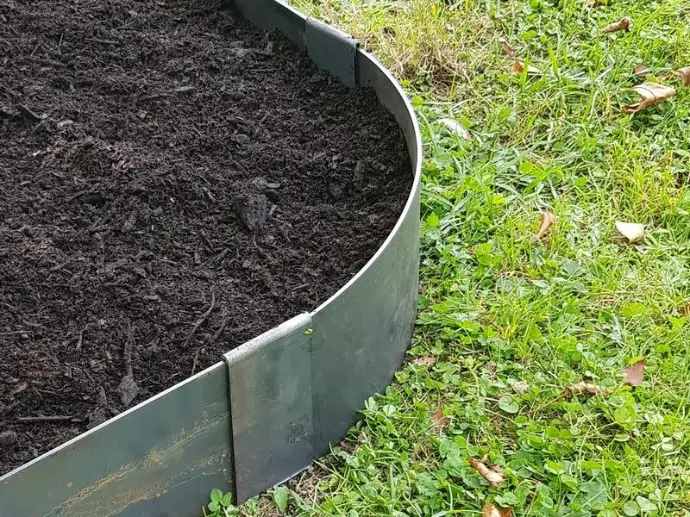

Preformed Curves

Use preformed corners and curves to create unique garden layouts

Haunching commercial applications

Haunching tight radii

Haunch is high load locations

In edging applications with anticipated high traffic loadings, haunching is suggested to provide more support

Coating buried corten

Coating buried corten with bitumen paint will increase the lifespan

Temporary stakes until concrete sets

The installer will vary the depth buried and height of haunching based on expected use.



Corten edging available in

100mm, 150mm, 200mm, 300mm tall

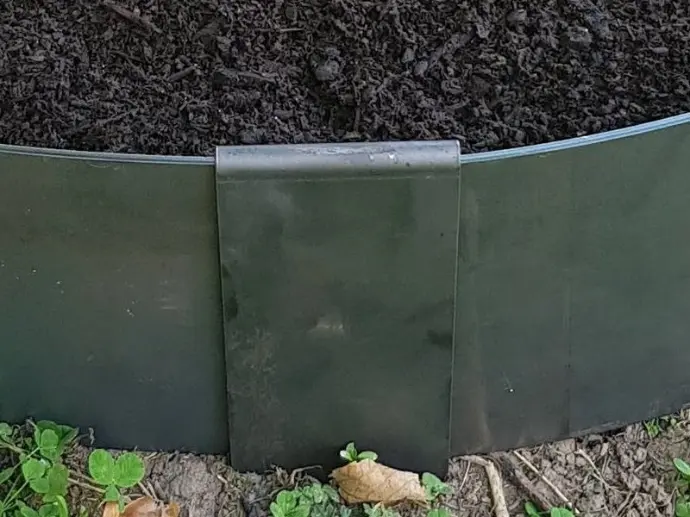

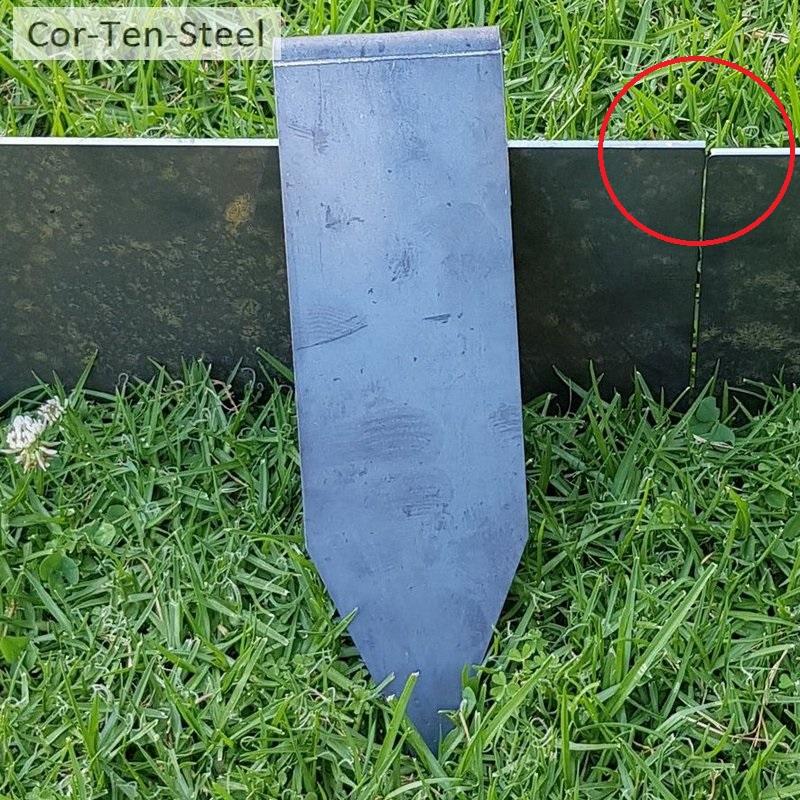

Small gaps at joins will be hidden by pegs

Corten is supplied as “blue steel” unweathered, Weathering takes 3-12 months of wet dry cycles

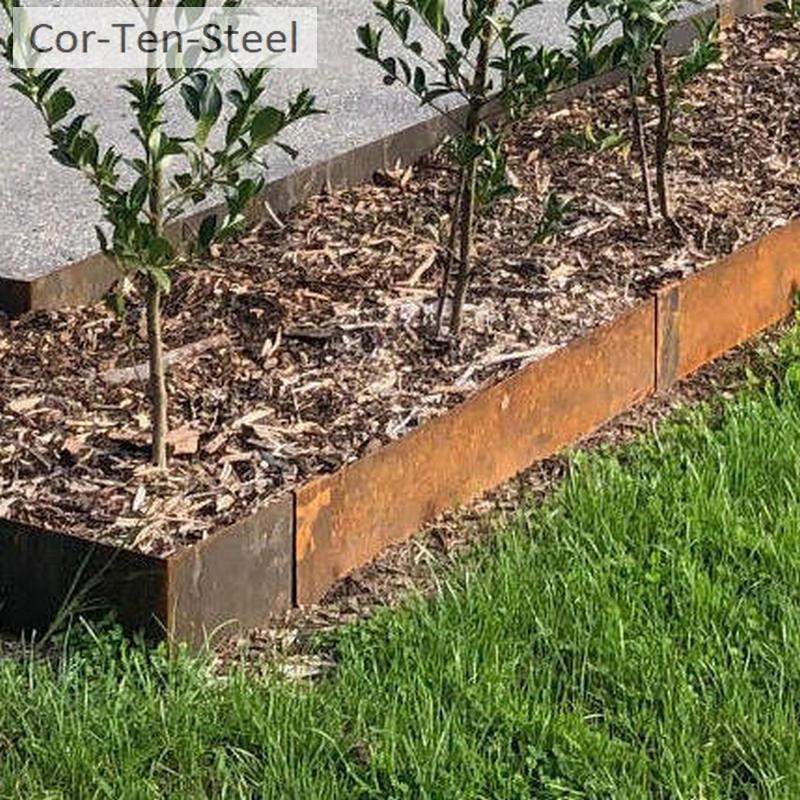

Close up of join

Maintenance free tidy edges


Different Height

Joining different height edging behind peg joiner


Rounding off End

Using an angle grinder to round the corten end

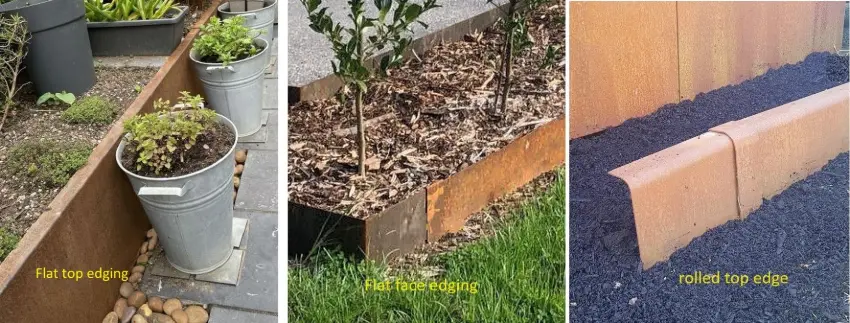

Flat Top Edging

Child and pet friendly

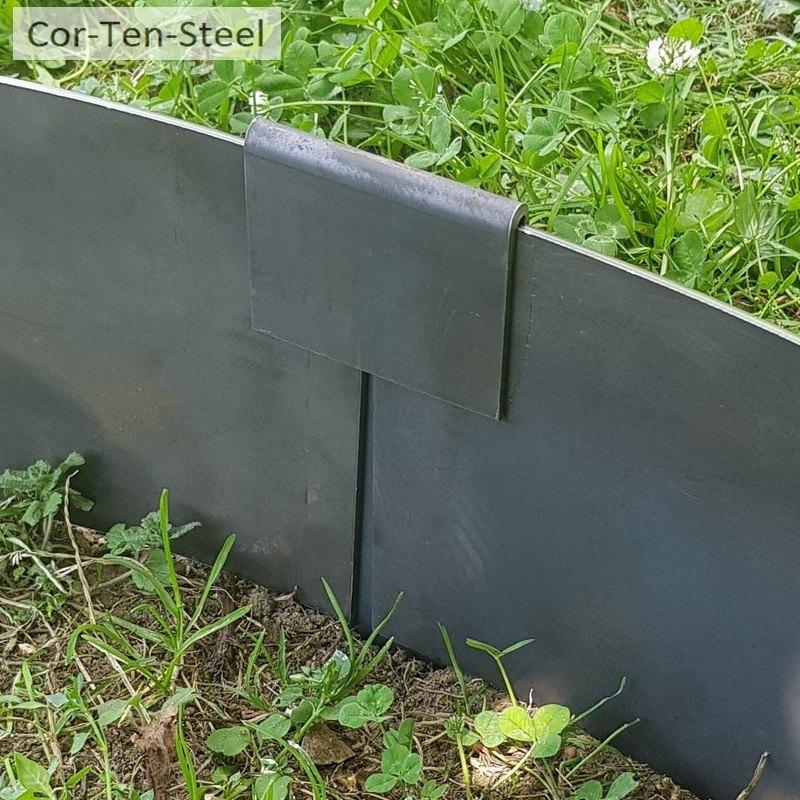

Edging peg joint

Increased strength by burying up to 1/3 of edging

Pre-made corners

We have both round and square corner pieces

Pre-made corners quarter section

Corten steel is a high tensile steel, however our DIY friendly curves in solid 3mm and 6mm thick edging, make tight radii simple to install.

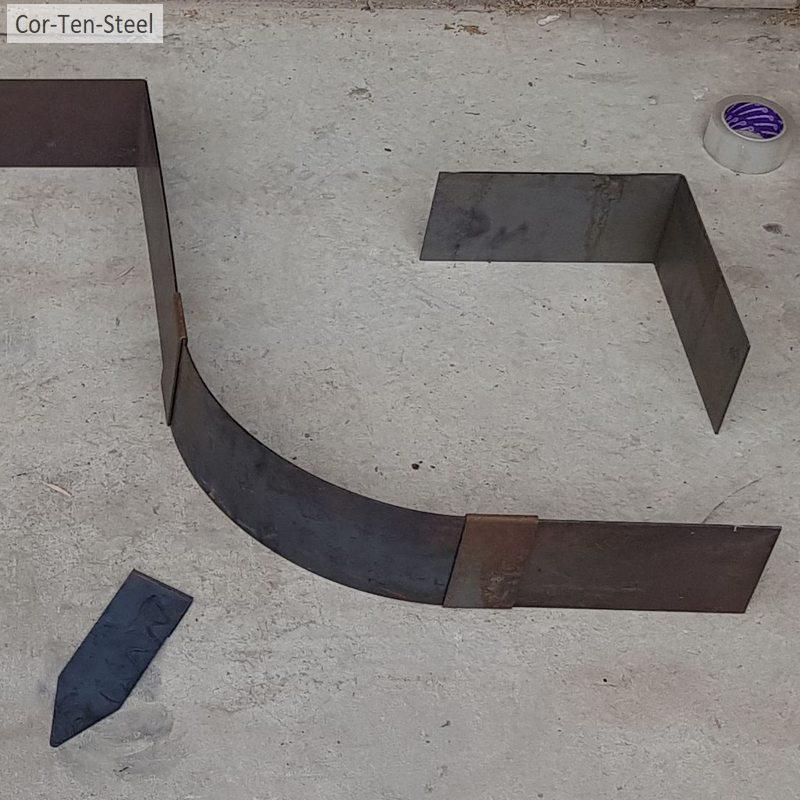

Preformed Curves and Corners

Full selection of curves and corner joiners available

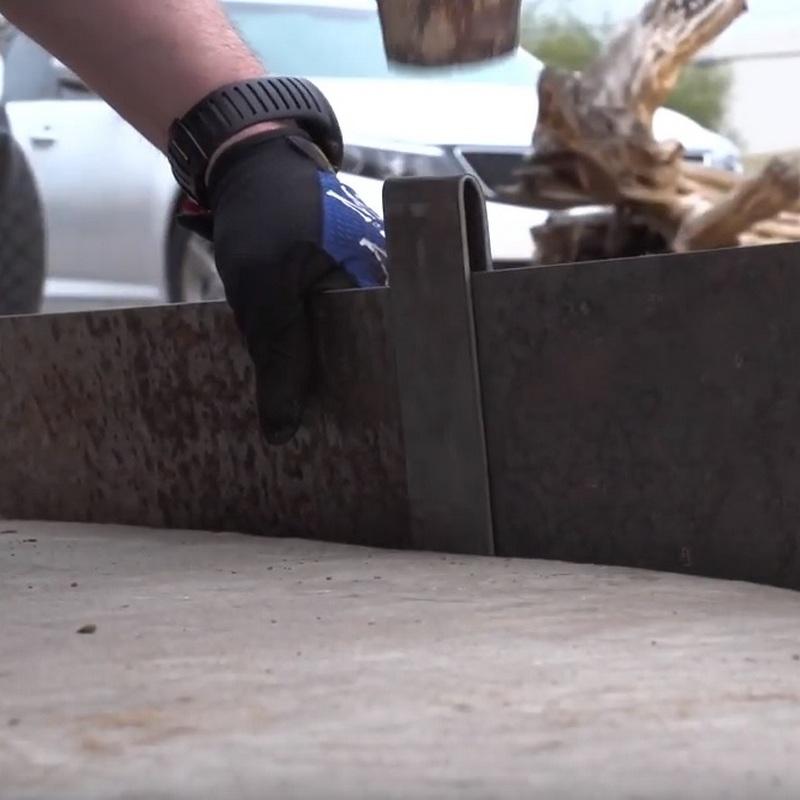

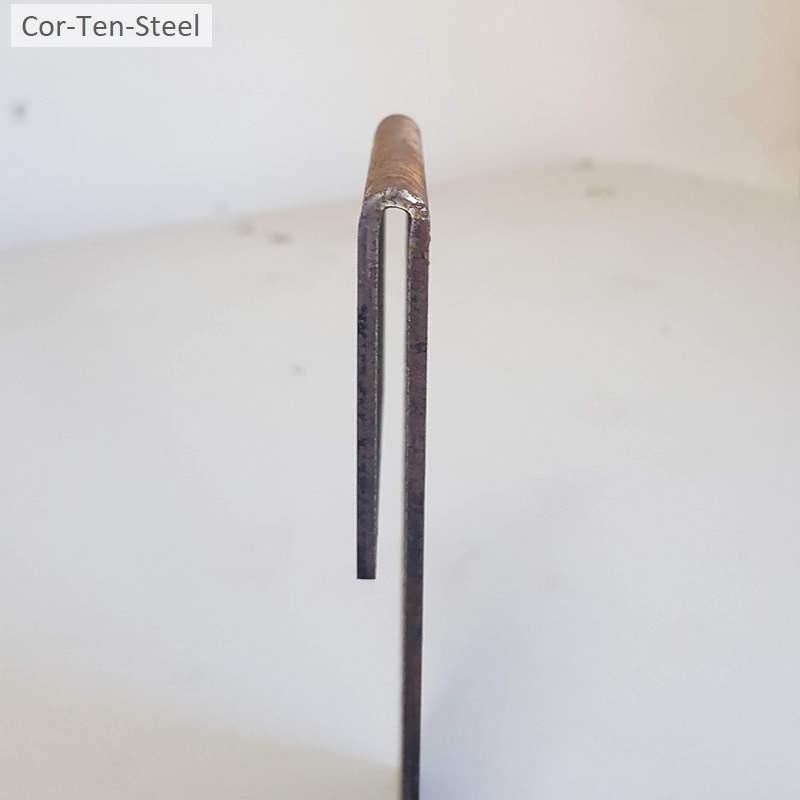

Peg fold fits snuggly over edging

The 3mm peg is designed to securely join the corten edge pieces. In softer soils you may need longer pegs

Install Flat Face pegs with a hammer

In summer soften the soil the night before, to make it easier to drive the pegs in.

Do not hammer Flat top edging in, set support posts in holes filled with concrete


String line and profile set up

Coating buried corten with bitumen paint will increase the lifespan


Install corten 1st

Then cut paving to fit. Place concrete paths after edging is installed


Complex shapes no problem

This shape uses the following parts. 90deg corner, 45deg corner, quarter circle, straight lengths and joining pegs


Eighth pre-made curved section

This layout uses, 90deg, 45deg, pre-made eighth curve, straight lengths and joiner pegs


Rounded corners

Quarter segments come in various radii from 300mm up to 1200mm


Using temporary stakes

Once the paving and gardens are in place, the stakes can be removed


Concrete around the peg base

For some projects using longer pegs and a small amount of concrete around the peg base, supports the edging prior to the paving and soil being placed


[email protected]

Please email me any, sketches, plans, and other information you may have,

I can then get back to you with suggested corten


4 quarters make a full circle

Quarter segments come in various radii from 300mm up to 1200mm. Ideal for around existing trees


Concrete around the peg base

For some projects using longer pegs and a small amount of concrete around the peg base, supports the edging prior to the paving and soil being placed


[email protected]

Please email me any, sketches, plans, and other information you may have,

I can then get back to you with suggested corten



 radius on top

Child and pet friendly edging has a smooth rolled edge on the straight sections
