Deadman Anchor Retaining Walls

Deadman Tieback Retaining Wall

For retaining walls up to 1.2mm wall with flat land behind and no surcharges.

Deadman anchor pile method

All parts come ready to install, no special tools required.

In ground anchor beam method

Our system is ideal for retaining walls up to 1200mm

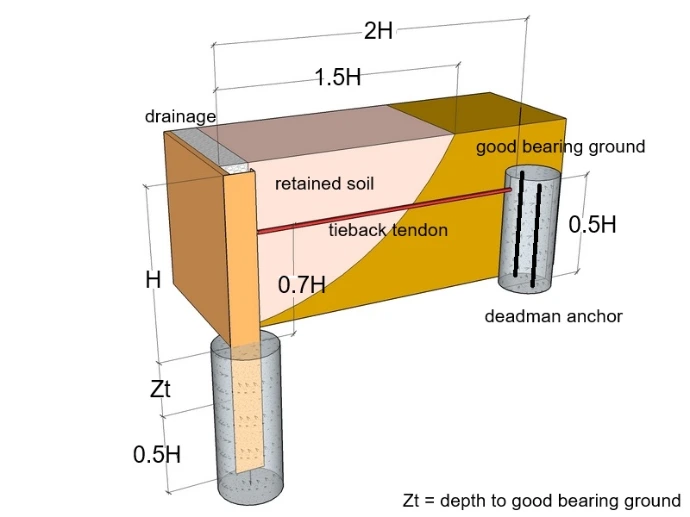

Deadman Tieback Retaining Wall

This method is for sites where soil conditions are not suitable for the standard post installation method

Every post has a tieback tendon to support the corten retaining wall. In weak soils, consult an engineer on anchor size and location.

Retaining wall examples and prices

The modular layout has over 100 different panel sizes to choose from, this enables you to build corten retaining walls that suit almost any location

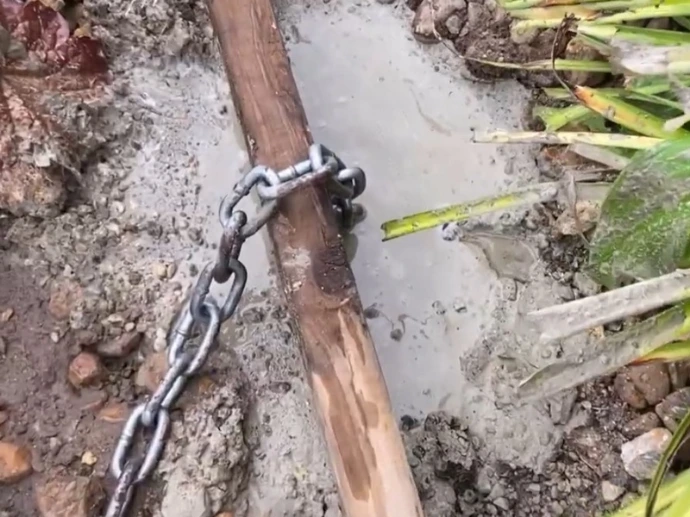

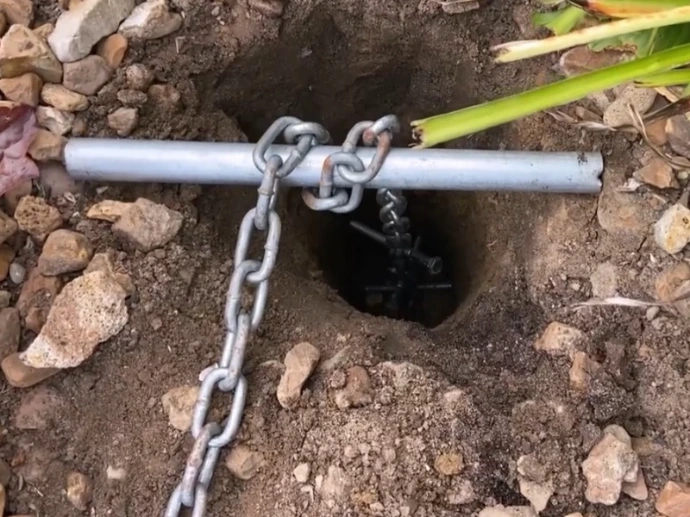

Chain ready to be dropped into reinforced deadman anchor pile

This is an engineer designed system, using the strong steel posts set in concrete pile hole construction method. This gives you a narrow retaining wall, ideal for where space is limited.

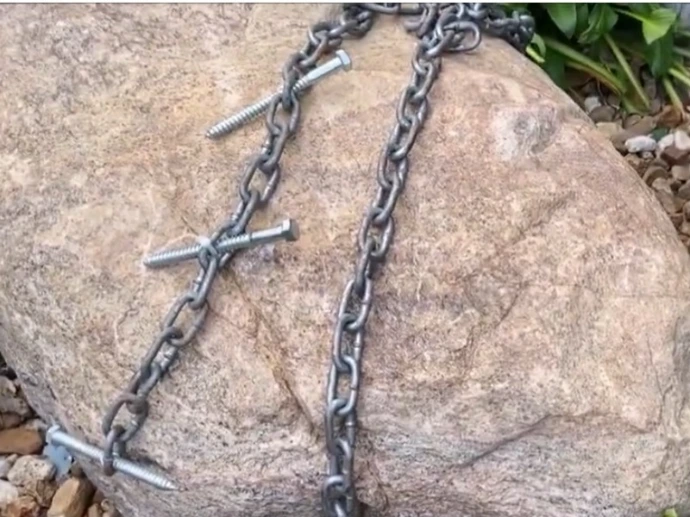

Tendon tieback chain

8mm welded heavy duty galvanised chain

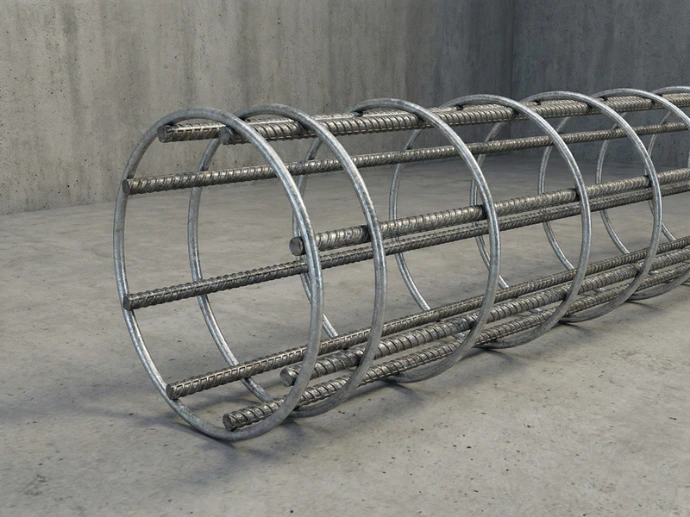

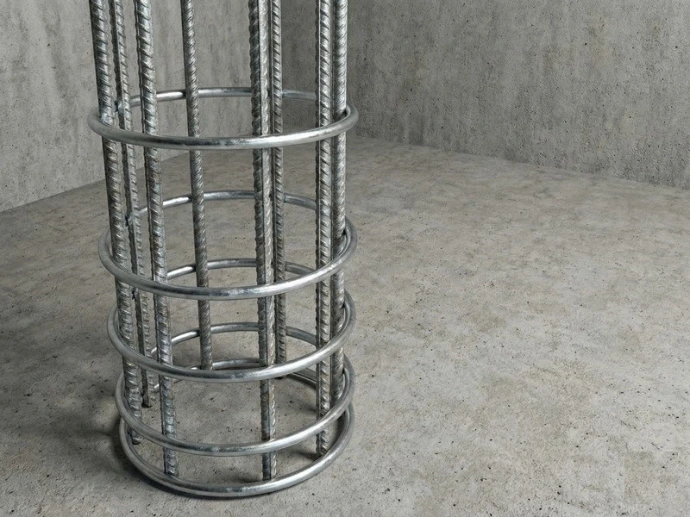

Reinforced Deadman anchor pile filled with concrete

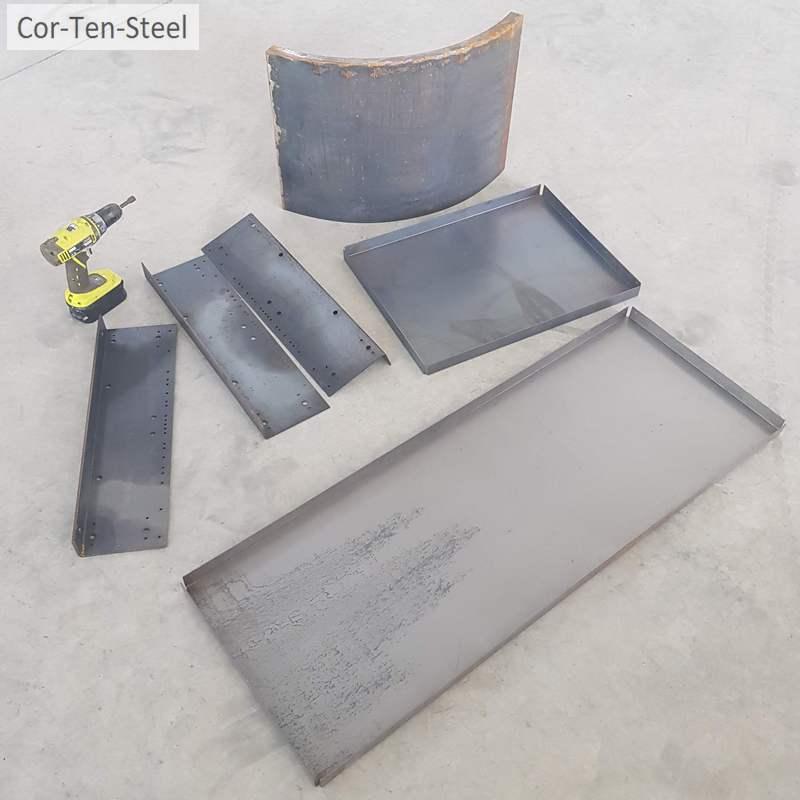

The system comes with premade corner joiners and curved panels

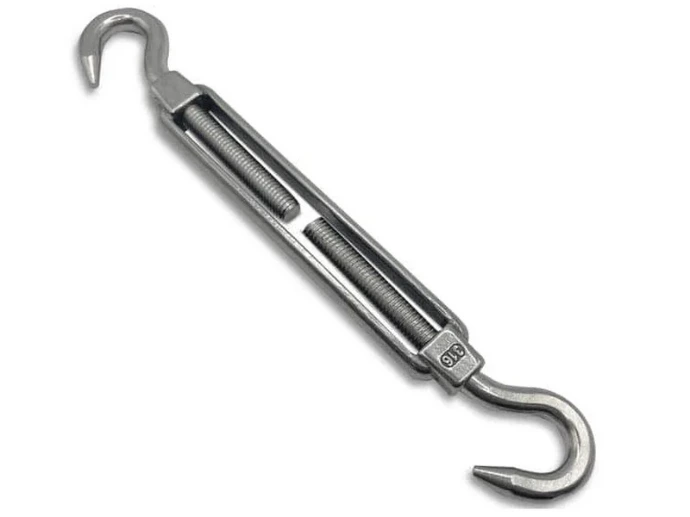

Stainless Steel Turnbuckle

Tension the tieback tendon with the turnbuckle prior to backfilling the retaining wall

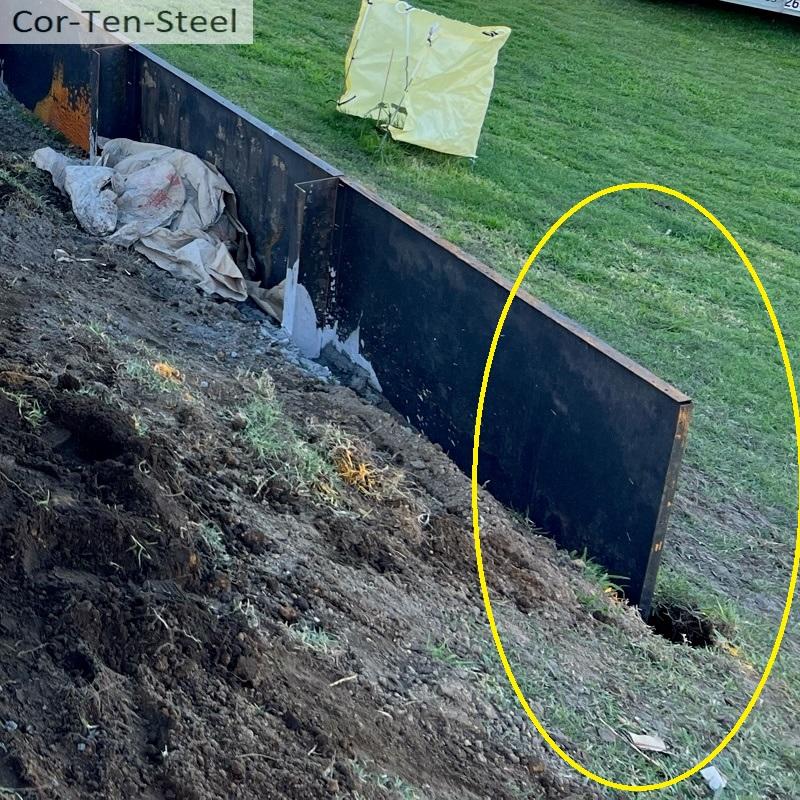

Next post to be bolted

To build the wall you start at one end and continue construction by adding panels and posts

Secure capping brackets

This enables you to build corten retaining walls that suit almost any location

Corten Capping Details

Explore our range of capping options and installation guides.

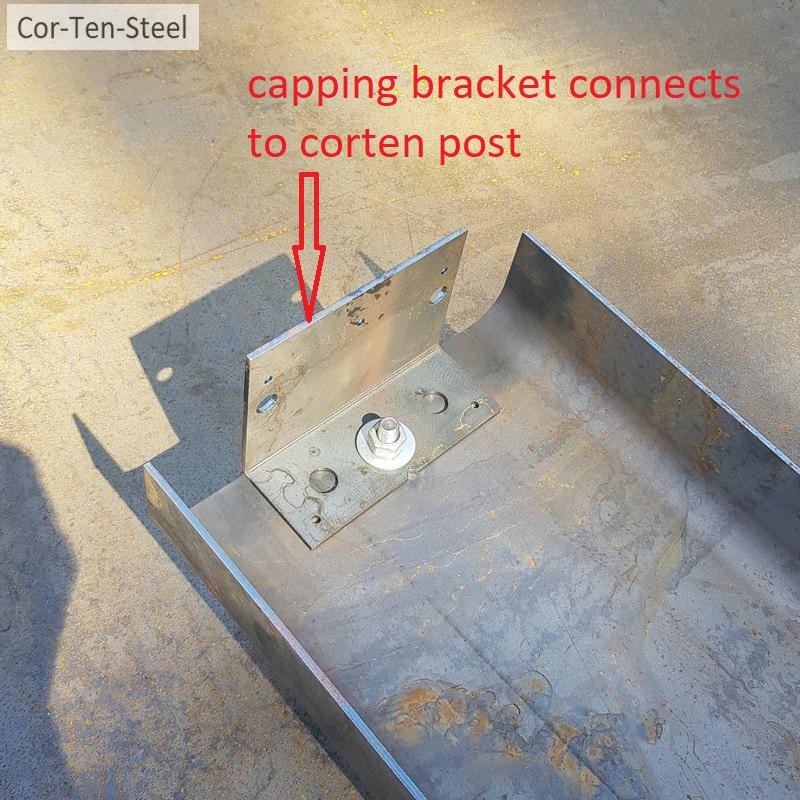

Capping Bracket

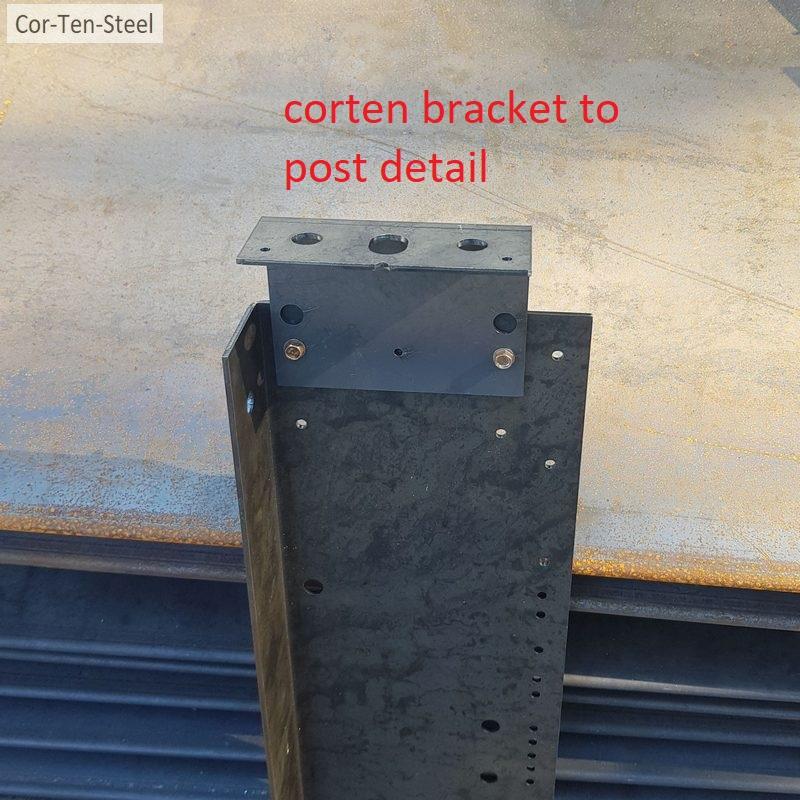

Capping bracket added to post

Panel Setout Guide

Setout examples with top capping

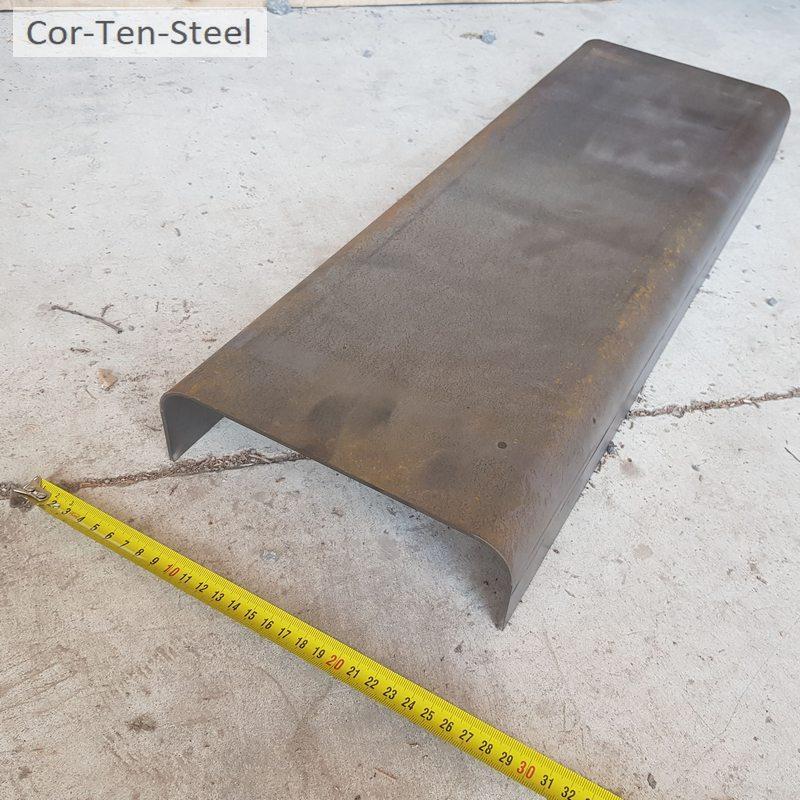

Capping Options

Cappings come with M10 nuts and bolts to connect to brackets

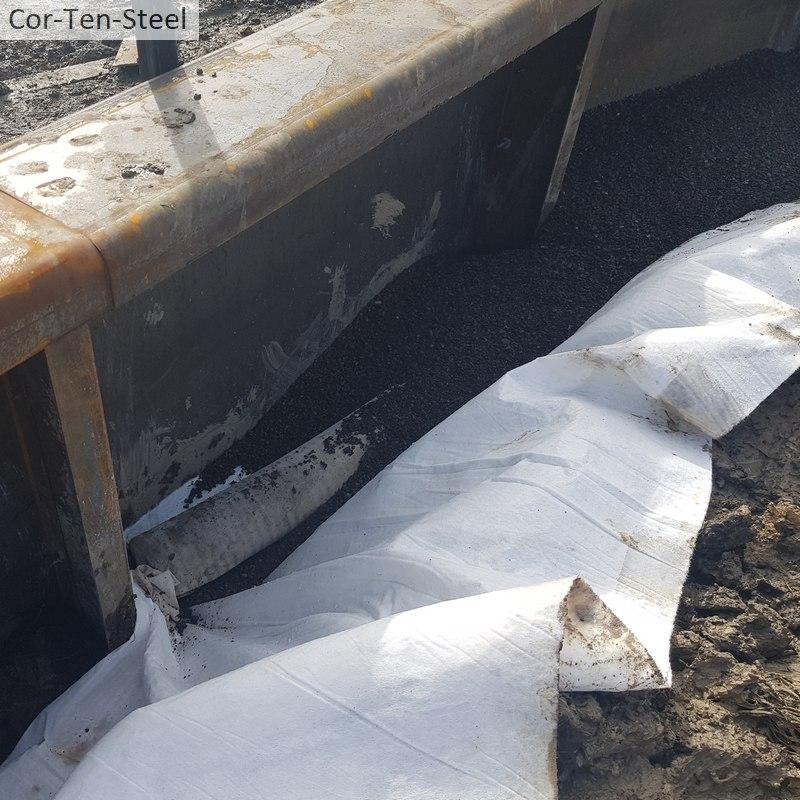

Retaining wall drainage info

A well built corten retaining wall with proper drainage will easily last 30-50yrs plus, depending on the environment

Retaining wall drainage info

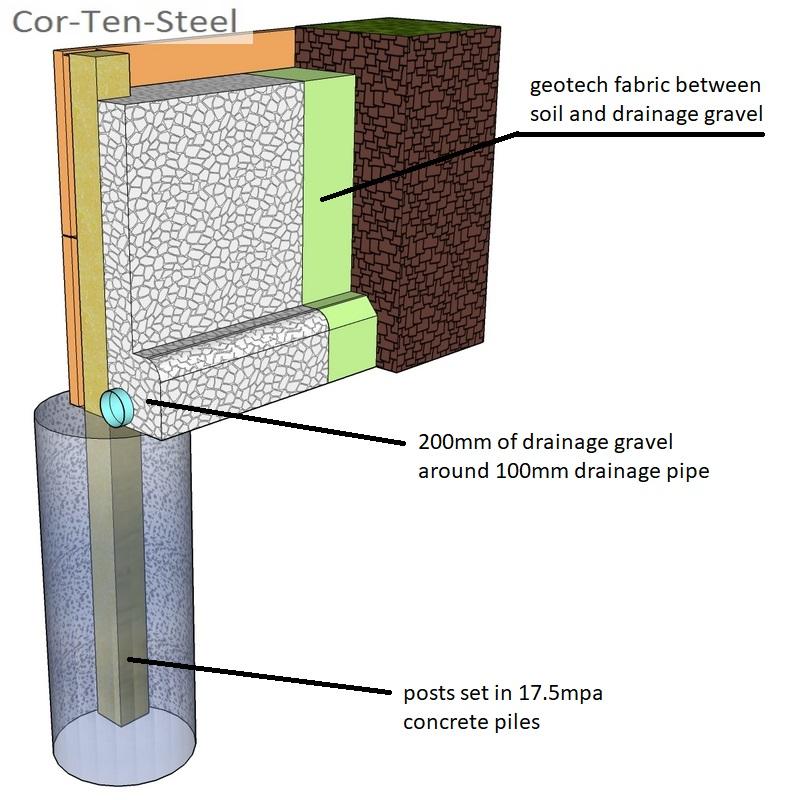

Proper drainage is essential for all corten retaining walls to prevent failure. Accumulated water behind the wall causes immense hydrostatic pressure, a lateral force that can cause the structure to bulge, or collapse. Drainage systems, like gravel backfill and perforated pipes, relieve this pressure, prevent hydrostatic pressure failures,

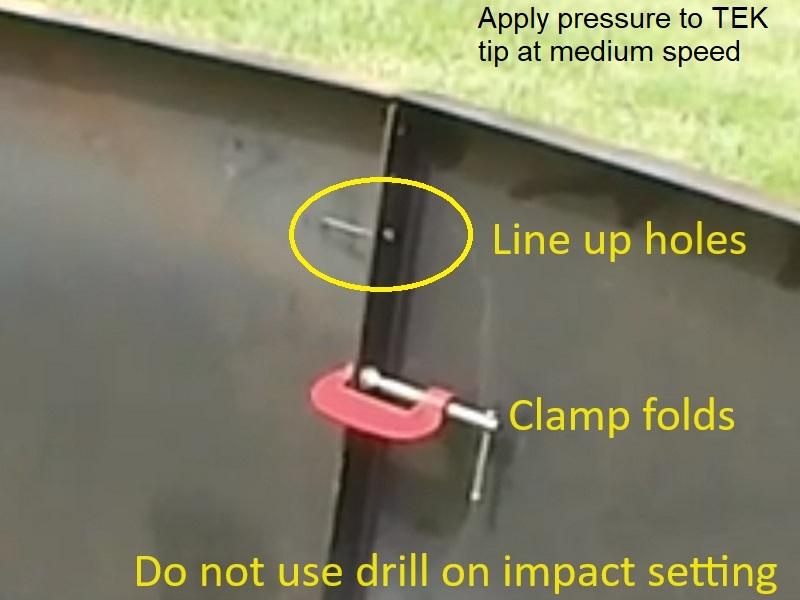

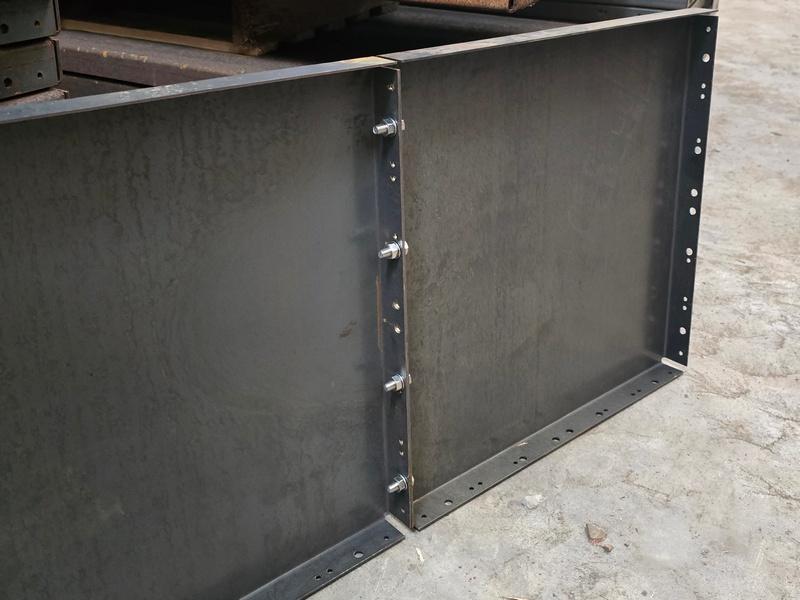

All parts predrilled for easy assembly

The modular design of Corten panel walls allows for faster installation These panels can be easily put together with minimal required tools and expertise. Our corten retaining wall system is DIY friendly and all parts come pre drilled ready to install with no special tools required. You should not need to do any cutting or welding of the corten.

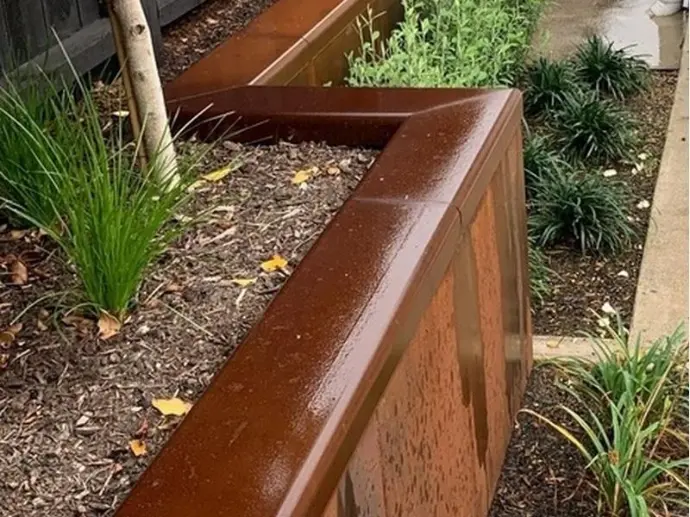

Corten retaining wall with capping

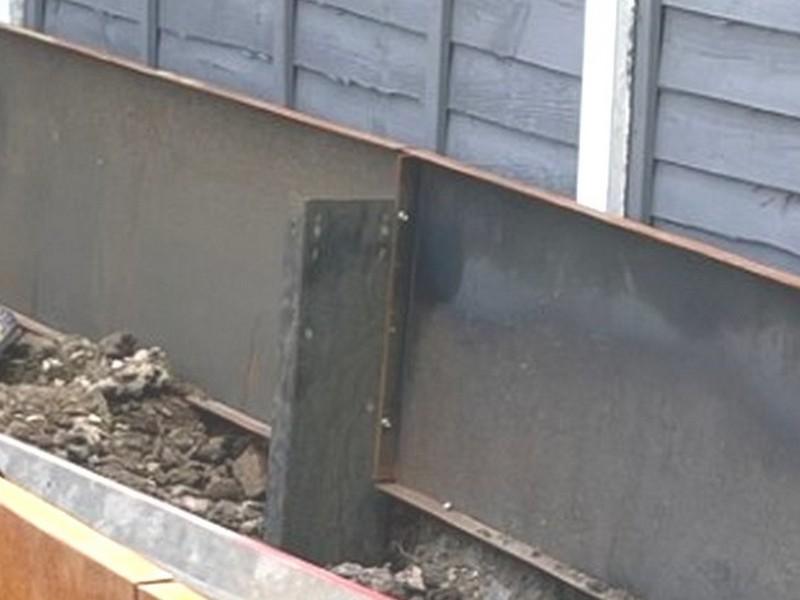

Corten retaining wall system with hidden fixings and support post lowered.

Setout examples no top capping

Generally the retaining wall pile hole depth is equal to the height of the retaining wall. However in softer soils or walls supporting sloping ground, driveways, or buildings, the post and pile retaining wall method solves this by adjusting the post spacings and pile depths.

Setout examples with top capping

Corten steel requires no maintenance, as over time it develops a crystalline rust patina that dramatically reduces further corrosion

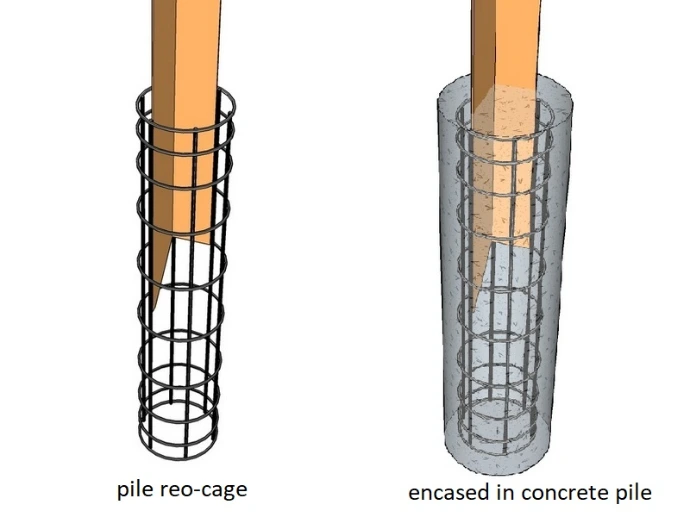

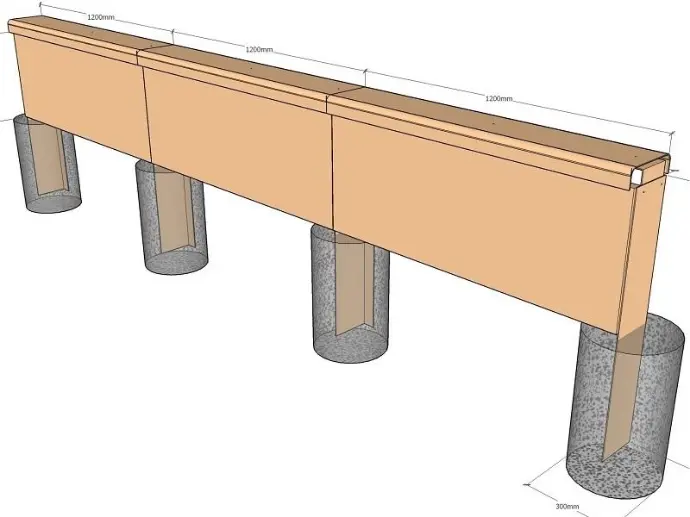

Deep concrete piles are the invisible support system

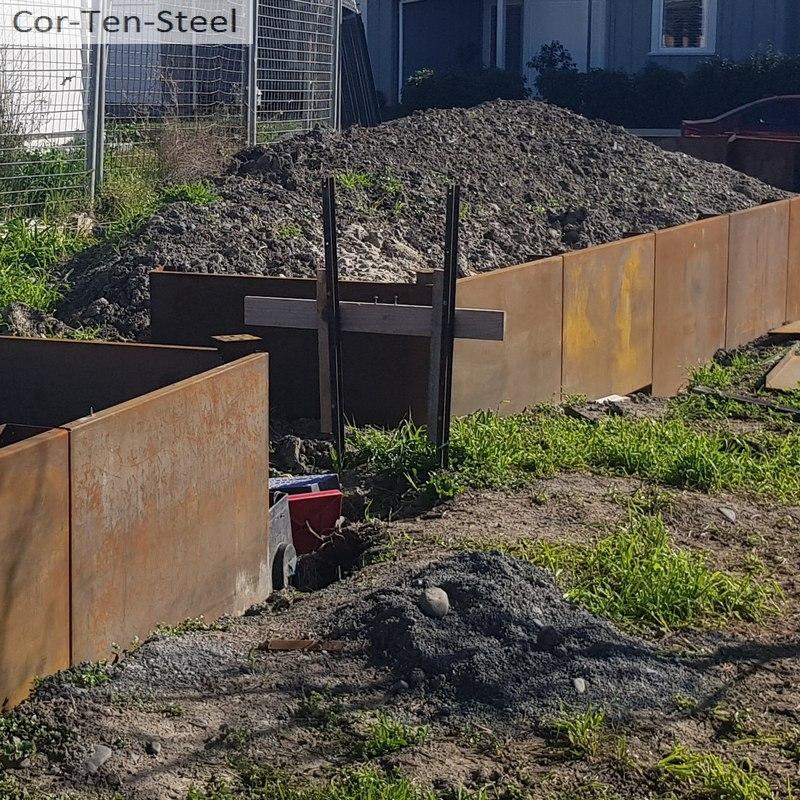

Setout examples with steps

Please email us your requirements, be sure to attached pics and sketches We can then help you with post and panel sizes required for your retaining wall

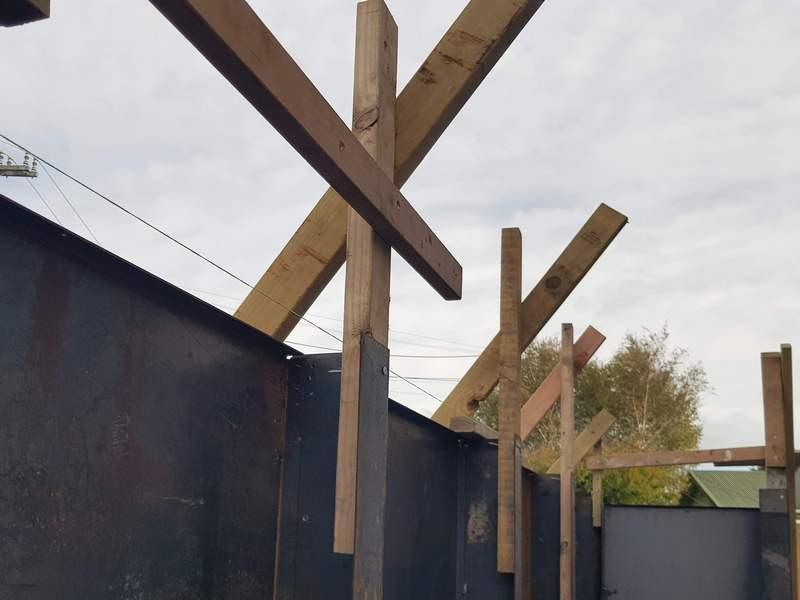

Temporary Braces

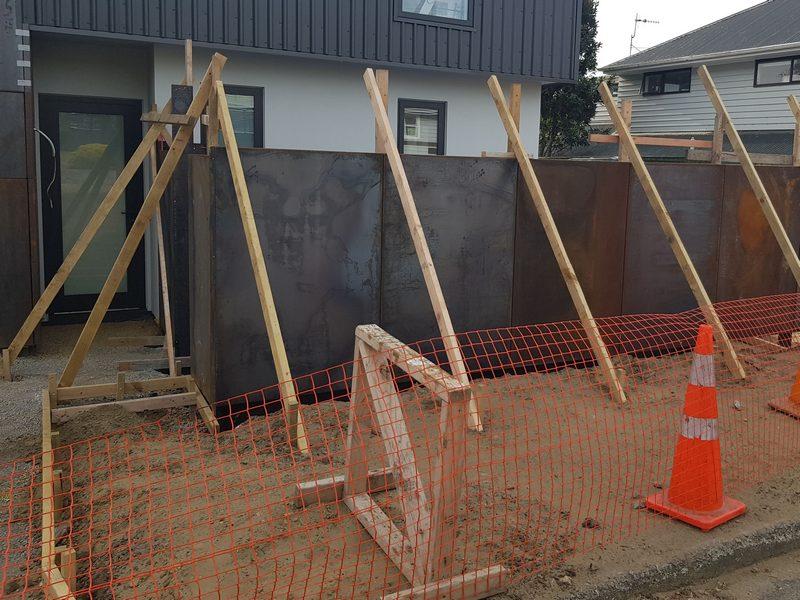

Corten support posts, with temporary timber bracing, before concrete is poured into pile holes

Temporary Braces

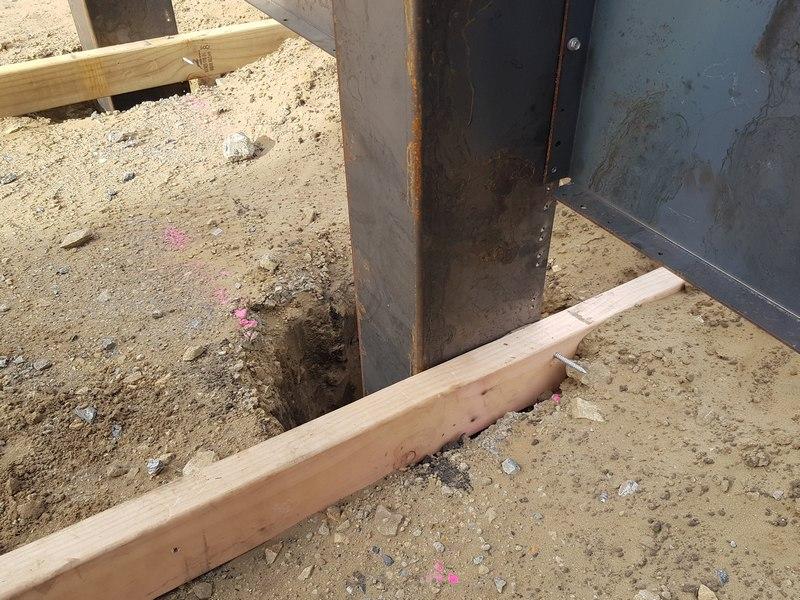

Corten support posts, with temporary timber bracing, at bottom of post. The corten steel posts have pre-drilled holes, making it easy to add the timber braces.

Temporary Braces

Corten support posts, with temporary timber bracing, at top of post. Remove bracing once concrete has set

String line Profile

Setting up string line to ensure straight panels

Temporary Panel and Post braces

Corten support posts, with temporary timber bracing. Remove bracing once concrete has set

Temporary Panel Supports

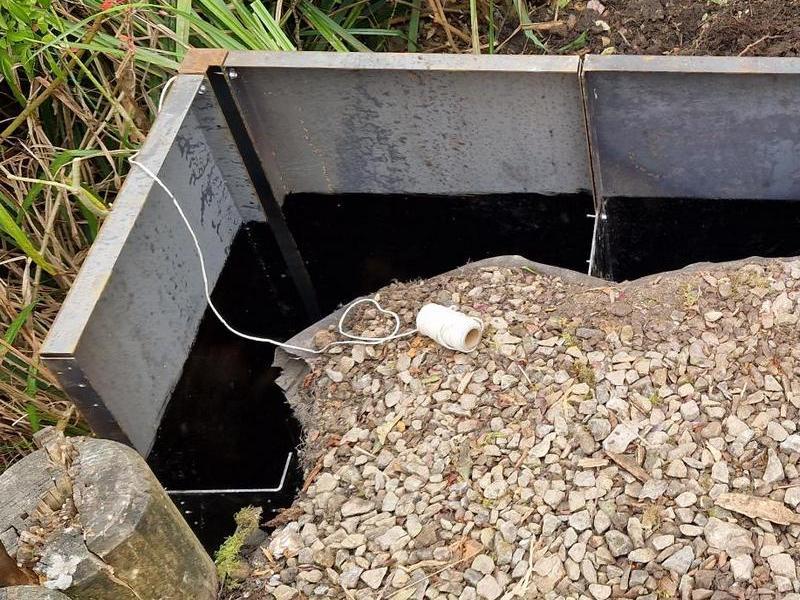

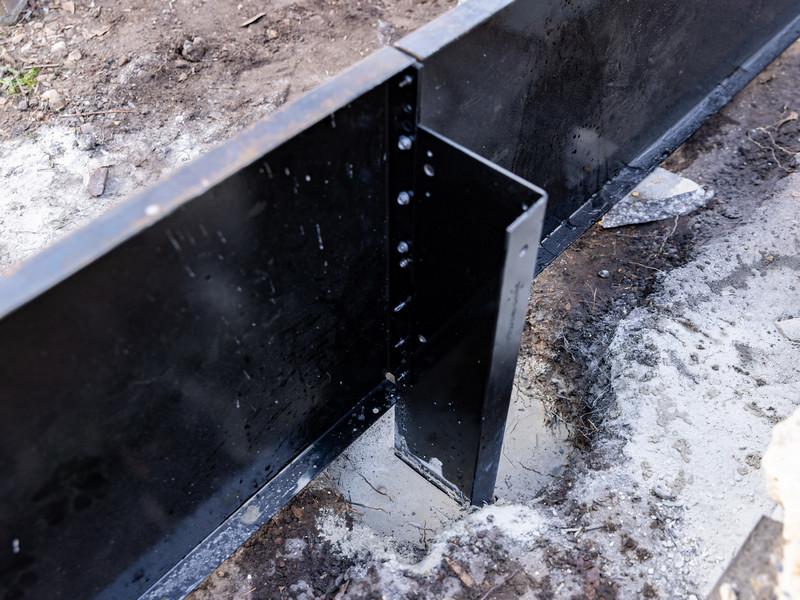

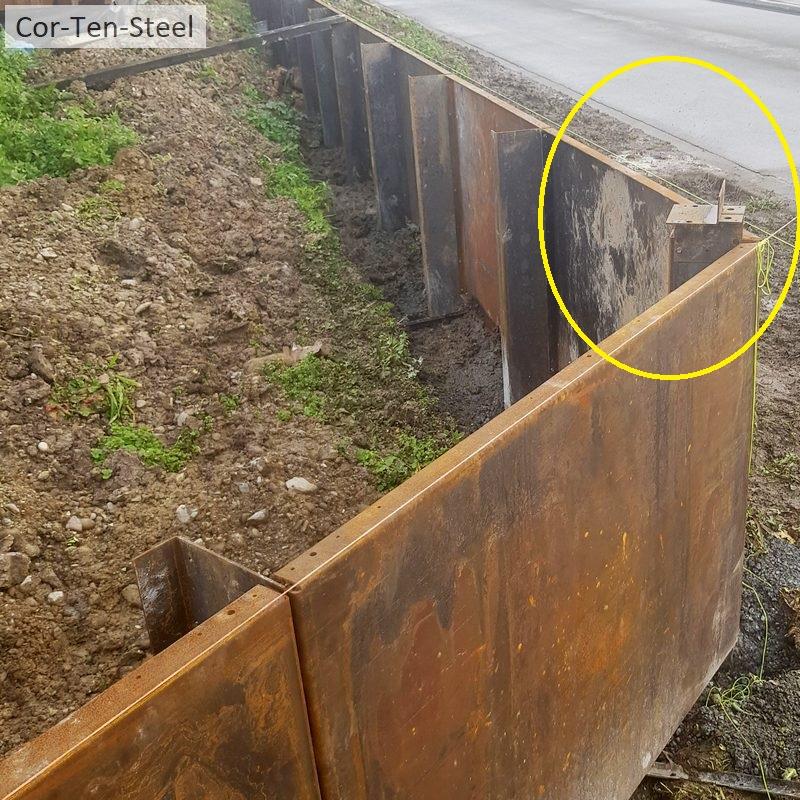

The corten steel posts and buried panels coated with bitumen paint

Corten Walls and Support

Lego-type corten walls are very strong.

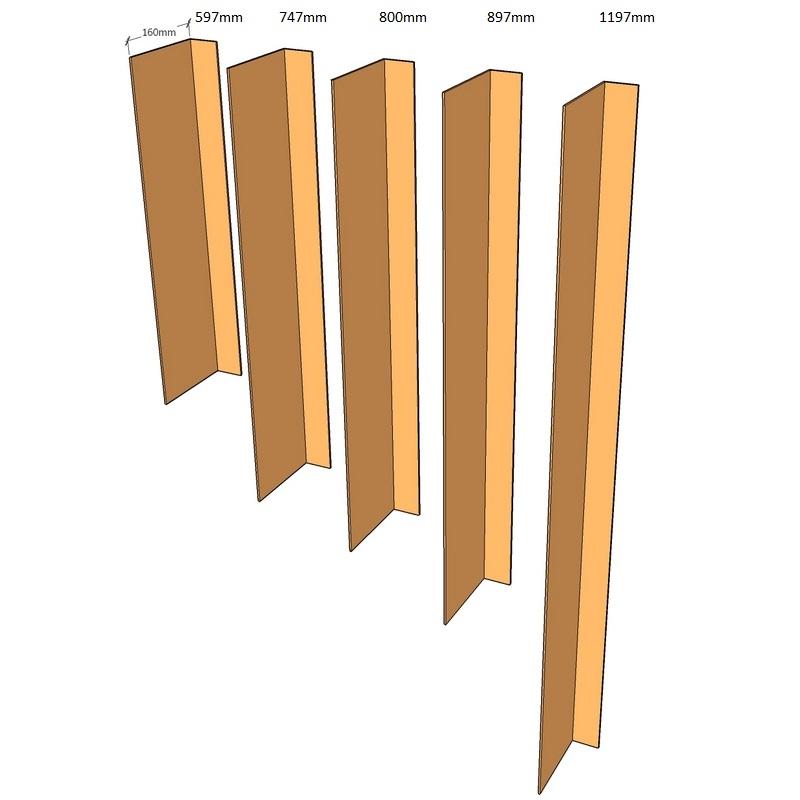

Longer posts

Longer posts used in softer soils

Corten side returns

Corten side returns for steps

Corten Retaining Change of Height

Corten Steel Care and Maintenance

By following these simple care and maintenance tips, you can ensure that your corten steel structures will last for many years to come.

How to assemble videos

We work with landscapers, architects, engineers, and Diyers to provide corten retaining wall layouts that are easy to assemble, we provide these retaining wall layouts for free. Please contact us via email

Any questions email us

[email protected]

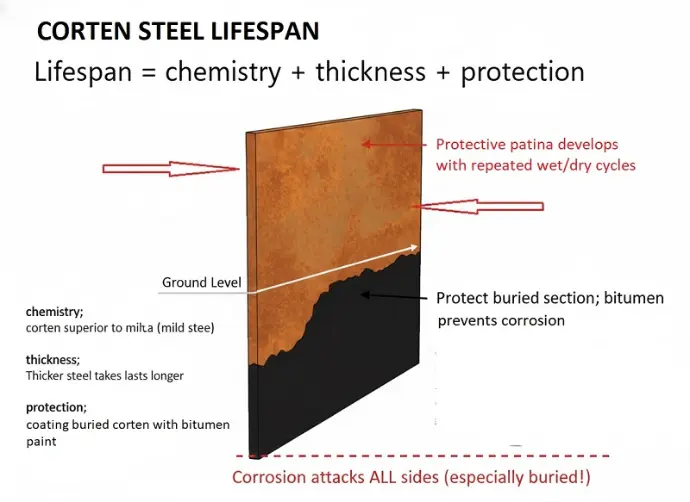

More info on lifespan

Avoid thin corten, which after as little as 10 years may be structurally inadequate

Curved Pieces Available

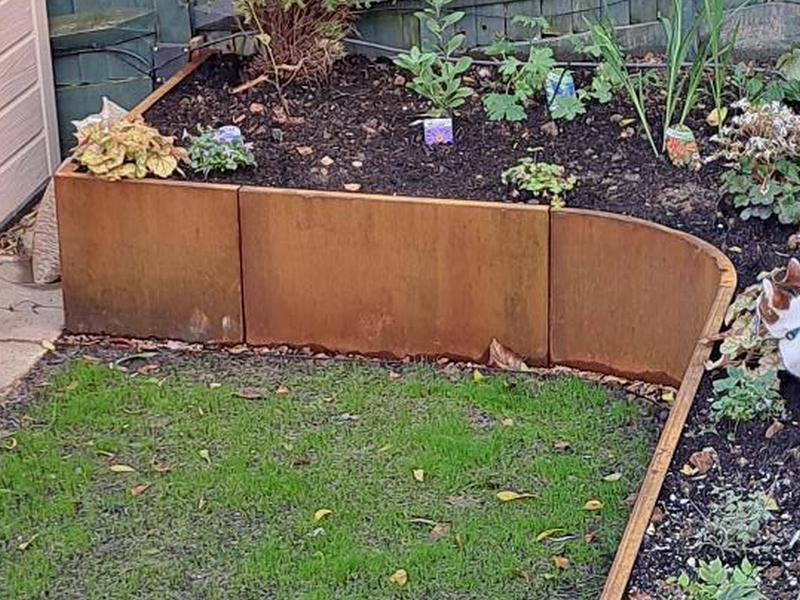

Rounded corner using quarter panel

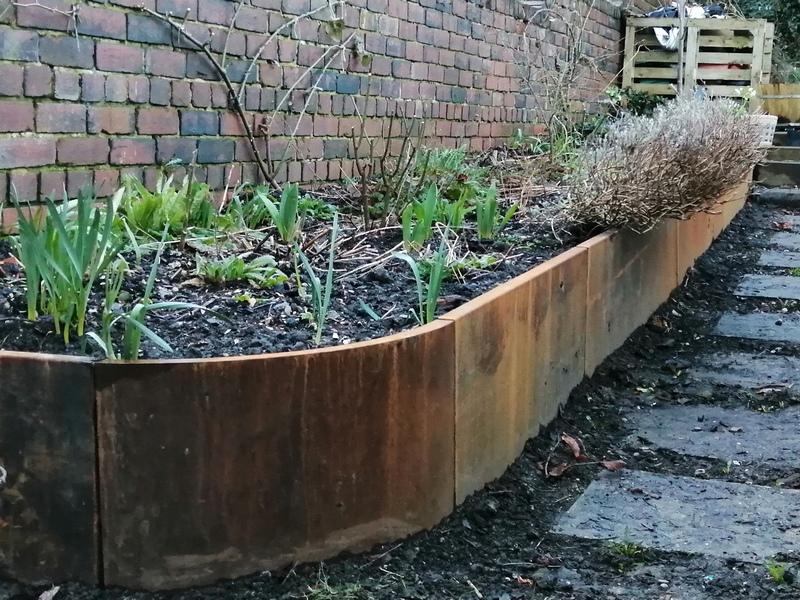

External Curved Pieces

Corten walls can have rounded internal or external corners

Curved Pieces Available

Premade curved panels allow you to create beautiful, natural-looking curves in your wall.

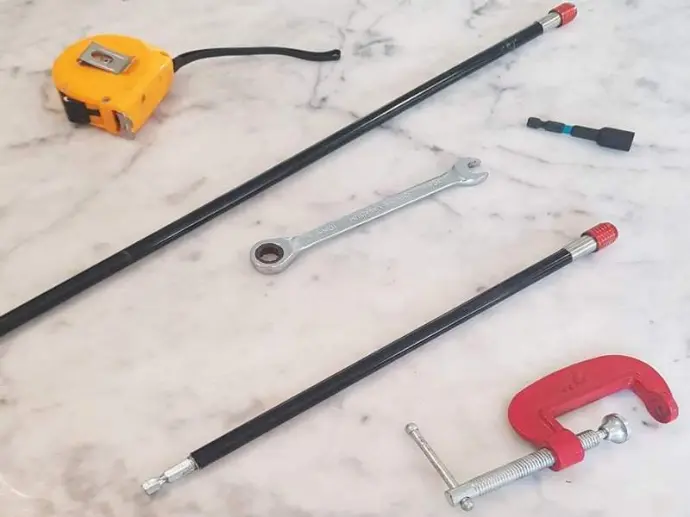

DIY Friendly System

Our corten retaining wall system is DIY friendly and all parts come pre drilled ready to install

Rounded corner using quarter panel

Corten walls can have rounded internal or external corners Then curved panels come in serval radii and heighs

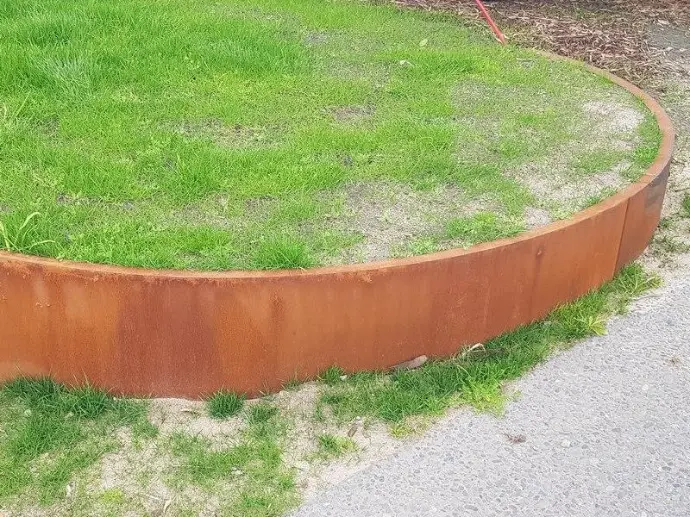

Curved retaining walls

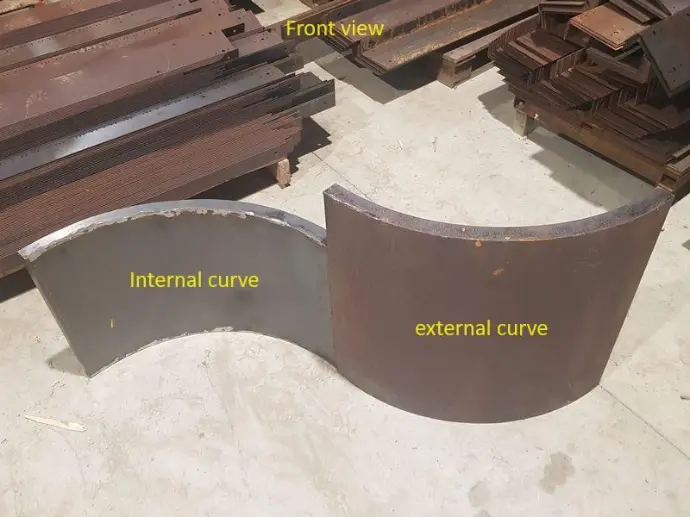

Internal and external curved pieces available

Half circle planter

Use 2 quarter sections to create a half planter

Rounded corner using quarter panel

Corten walls can have rounded internal or external corners Then curved panels come in serval radii and heighs

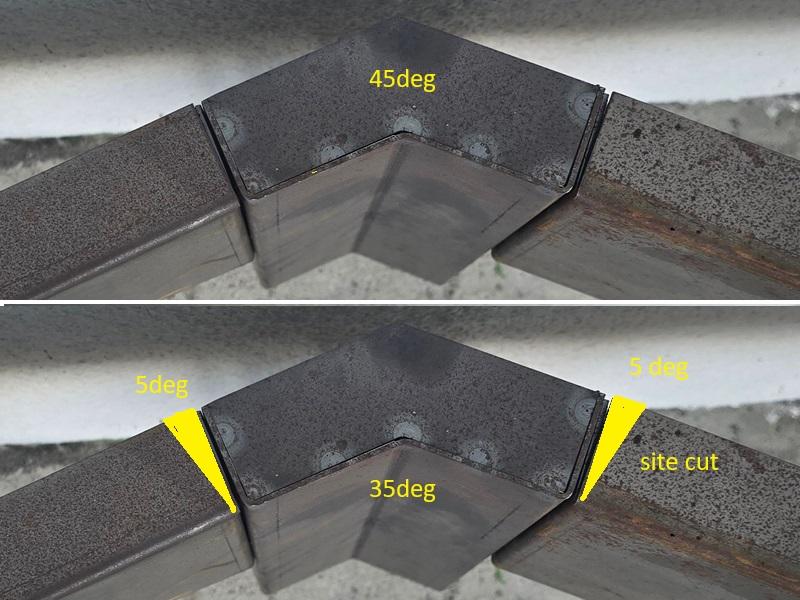

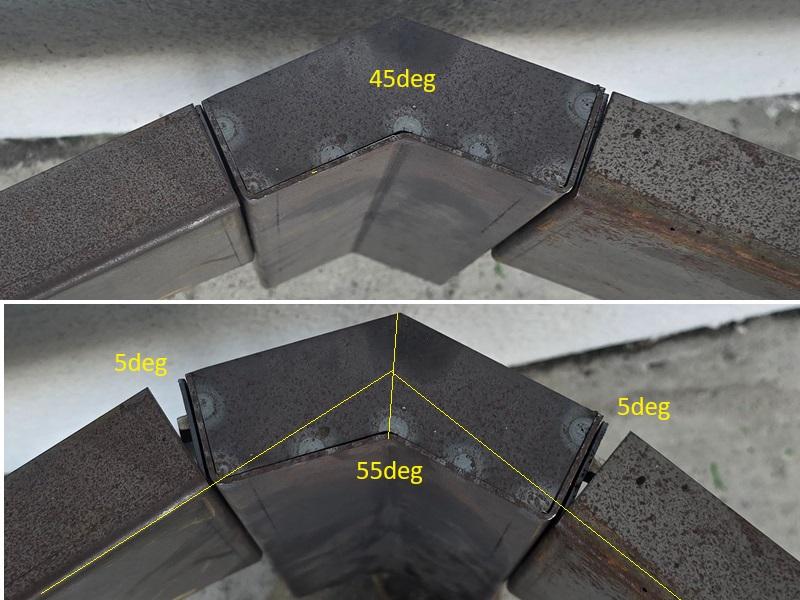

Corner joiner angle tolerance

The side folds can be site bent to create a 5deg to 10deg additional change in direction This allows the installer to cope with angels that are not exactly 45deg or 90deg

Corner joiner angle tolerance

The side folds can be site bent to create a 5deg to 10deg additional change in direction To reduce the change in direction, the top fold can be trimmed by the installer
